Product   Series

Mini-SFF   Optical Transceiver

Module   Series

Ultra-compact ·   Military-grade · CWDM-ready · Dual-fiber & Single-fiber BiDi

6

Module   Variants

155M   – 10G

Data Rate   Range

−55   to +100°C

Temperature   Grades

160   km

Max Reach   (SMF)

◆

Ultra-Compact   Form Factor

Approximately 40% smaller than a standard SFP module, enabling   high-density board and chassis integration where space is critical.

◆

Three   Military Temperature Grades

Industrial (−40°C to +85°C), military (−55°C to +85°C), and   super-military (−55°C to +100°C) grades within the same platform family.

◆

Full   Metal EMI Housing

All-metal enclosure provides vibration resistance, mechanical   robustness, and electromagnetic shielding for airborne, shipborne, and   ground-based platforms.

◆

Level 4   ESD Protection

Comprehensive ESD protection and low EMI emission ensure stable   operation in high-density electronics and power-sensitive environments.

◆

Full   CWDM Wavelength Coverage

O, E, S, C, and L-band channel support enables multi-channel WDM   deployment over a single shared fiber infrastructure.

◆

Flexible   Connector & Interface Options

LC dual-fiber and FC single-fiber BiDi variants; CML/TTL signal   interfaces; optional digital diagnostics monitoring (DDM).

Sub-Series A  —  Dual-Fiber LC Modules

Sub-Series B  —  Single-Fiber BiDi FC Module

A

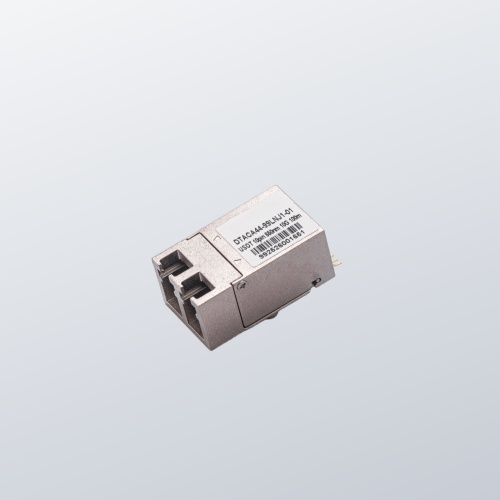

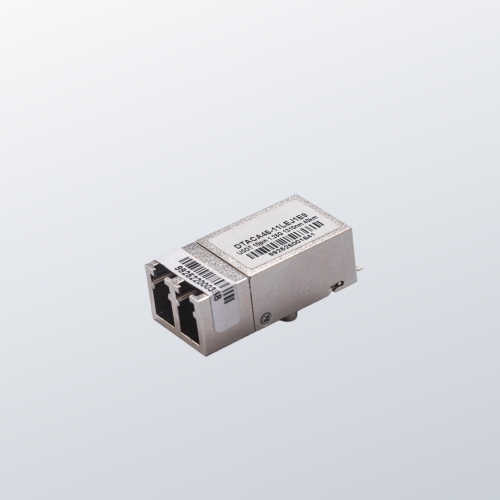

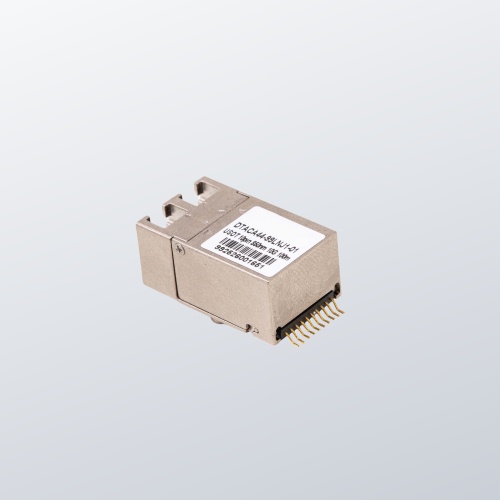

DTACA44/45/46  —    12-pin Dual-Fiber LC

Military-screened multi-rate module; broadest wavelength   and distance coverage

Data Rate

622 Mbps / 1.25G / 10G

Typical   Application

Synchronous digital radar arrays and EW platforms requiring wide   wavelength selection and military environmental compliance.

Differentiating   Feature

Broadest wavelength and distance coverage in the series; available in   the widest range of ordered configurations.

B

DTACB /   DTAFO  —  12-pin CWDM Dual-Fiber LC

CWDM multi-channel WDM module with digital diagnostics;   100M to 2.5G

Data Rate

100 Mbps / 1.25G / 2.5G

Typical   Application

Multi-channel WDM fiber transmission in energy infrastructure,   substation automation, and SONET/SDH link aggregation.

Differentiating   Feature

Full CWDM wavelength table coverage (O to L-band) with selectable TX   and RX channel codes; supports DDM for real-time module health monitoring.

C

DTACA**  —    10-pin CWDM Dual-Fiber LC

Ultra-compact 10-pin CWDM module at 1.25G; up to 120 km   over SMF

Data Rate

1.25G

Typical   Application

High-reliability long-distance point-to-point fiber links in   phased-array radar and remote monitoring infrastructure.

Differentiating   Feature

Most compact CWDM dual-fiber option in the series with full metal   housing; ideal for space-constrained PCB designs.

D

DTACB45/46  —    12-pin Multi-rate Dual-Fiber LC

Widest rate range in the series (155M–10G);   super-military grade available

Data Rate

155M / 1.25G / 2.5G / 3.125G / 4.25G / 6.25G / 10G

Typical   Application

High-density phased-array system integration, electronic   countermeasures platforms, and military communication infrastructure   requiring flexible adaptive data rates.

Differentiating   Feature

Widest data-rate range in the series (155 Mbps to 10G); adaptive   multi-rate support (2.5G / 4.25G / 6.25G / 10G); super-military grade   available.

E

DTACA44/45/46  —    10-pin LC Pluggable

Pluggable LC interface; 155M–4.25G; field-reconfigurable   design

Data Rate

155 Mbps / 1.25G / 2.5G / 3.125G / 4.25G

Typical   Application

Parallel data link integration in phased-array systems and   countermeasures equipment requiring surface-mount I/O with a compact profile.

Differentiating   Feature

LC pluggable interface enables dynamic data connection reconfiguration   without re-soldering — suitable for field-serviceable deployments.

F

GABA-xxxx  —    10-pin BiDi Single-Fiber FC

Single-fiber bidirectional over threaded FC connector;   10.3125 Gbps

Data Rate

10.3125 Gbps

Typical   Application

Fiber-count-critical applications such as shipborne radar backplane   networks and airborne communication links where each fiber must carry full   bidirectional traffic.

Differentiating   Feature

Only single-fiber BiDi module in the series with a mechanically   secured FC threaded connector for vibration-resistant, high-reliability   environments.

Digital   Radar & Phased-Array

High-speed synchronous fiber links between radar processing and   antenna elements; deterministic latency, EMI-hardened.

Electronic   Countermeasures (EW)

EW platforms and signal intelligence equipment requiring compact,   shielded optical data links.

Military   Avionics & Naval Networks

Airborne and naval fiber backbones requiring FC thread-lock connectors   and wide temperature grades.
